1) High suction capacity and low noise. lts noise is lower than 67dB.
2) Strong capability for vapor pumping.
3) Environmental-friendly. Equipped with oil mist eliminator, 99.999% oil mistin exhaust could be eliminated.
4) Compact structure, reasonable design and easy to install in industrial systems.
For any question, please feel free to send inquiry to: wang@boaovacuum.com or call us: +86 159 8815 9838
| Model | Pump speed (m3/h) | Ultimate vacuum (Pa) | Motor Power (KW) | Inlet Diam (inch) | Rotary speed (rpm) | Oil Capacity (L) | G.W (kg) | Noise dB (A) | Dimensions (mm) | |
| 50HZ | 60HZ | |||||||||
| SV-008 | 8 | 9.6 | 200 | 0.55(1ph) 0.37(3ph) | G3/8 | 2800 | 0.25 | 11 | 68 | 340*210*205 |
| SV-010 | 10 | 12 | 200 | 0.55(1ph) 0.37(3ph) | G1/2 | 2800 | 0.3 | 18 | 69 | 340*210*205 |
| SV-016 | 16 | 19.2 | 200 | 0.75(3ph) 0.90(1ph) | G1/2 | 2800 | 0.3 | 18 | 69 | 340*210*205 |
| SV-020 | 20 | 24 | 200 | 0.75(3ph) 0.90(1ph) | G1/2 | 2800 | 0.5 | 20 | 64 | 405*253*210 |
| SV-025 | 25 | 30 | 200 | 0.75(3ph) 0.90(1ph) | G3/4 | 2800 | 0.5 | 20 | 64 | 405*253*210 |
| SV-040 | 40 | 48 | 50 | 1.5kw | G11/4 | 1400 | 1.0 | 50 | 67 | 660*300*270 |
| SV-063 | 63 | 75 | 50 | 2.2 | G11/4 | 1400 | 2.0 | 83 | 68 | 695*420*295 |
| SV-100 | 100 | 120 | 50 | 3.0 | G11/4 | 1400 | 2.0 | 87 | 72 | 735*420*295 |

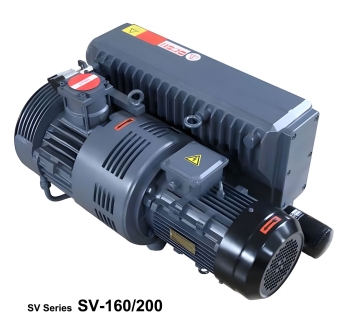

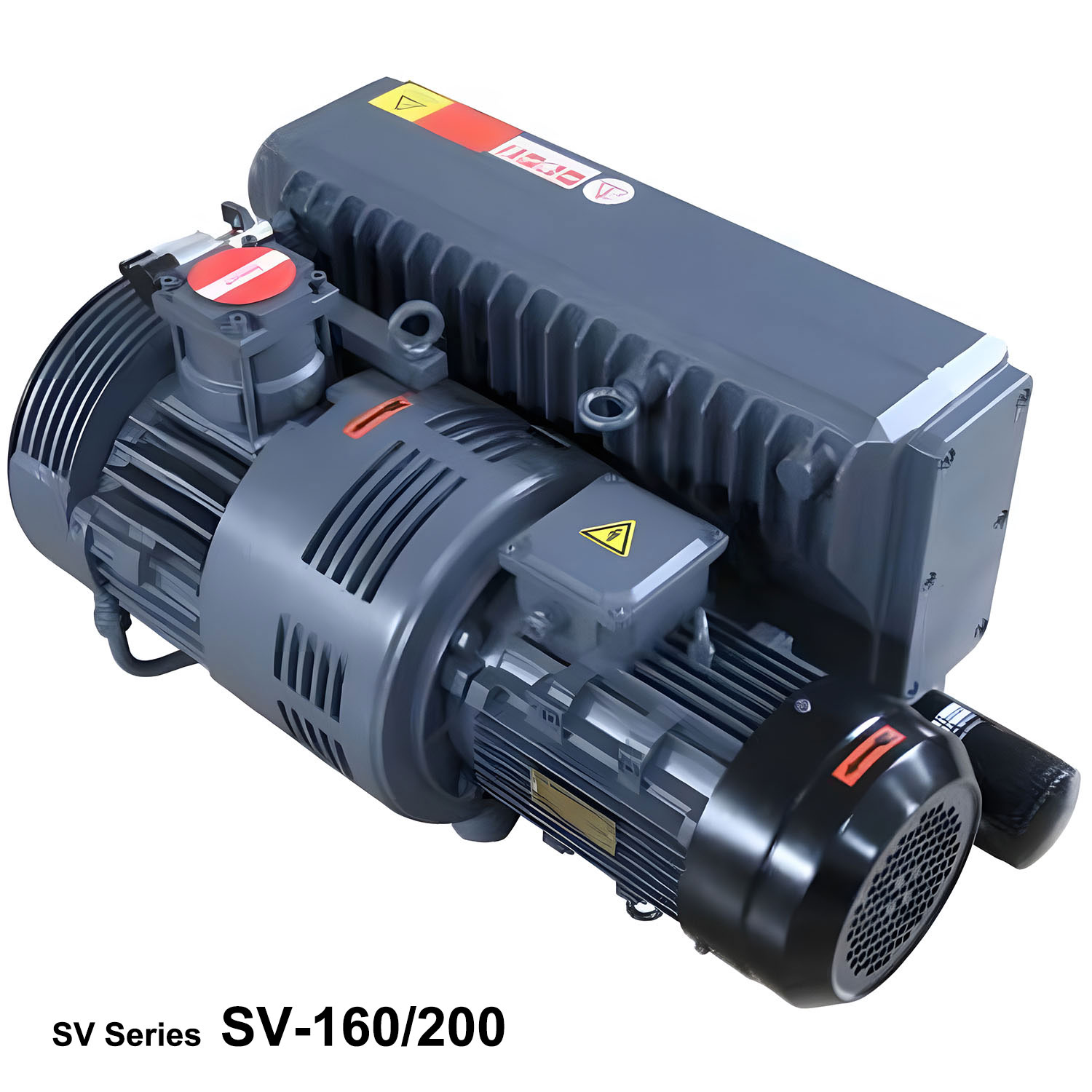

| SV-160 | 160 | 192 | 50 | 4.0 | G2 | 1400 | 4.5 | 152 | 74 | 805*520*410 |
| SV-200 | 200 | 240 | 50 | 4.5 | G2 | 1400 | 4.5 | 159 | 76 | 825*520*410 |
| SV-250 | 250 | 300 | 50 | 5.5 | G2 | 1400 | 7.0 | 230 | 76 | 1000*550*410 |
| SV-300 | 300 | 360 | 50 | 7.5 | G2 | 1400 | 7.0 | 236 | 76 | 1200*550*410 |
| SV-630 | 630 | 750 | 10 | 15.0 | DN100 | 960 | 35 | 620 | 75 | 1630*1300*980 |
| SV-750 | 750 | 900 | 10 | 18.5 | DN100 | 1150 | 35 | 640 | 76 | 1630*1300*980 |

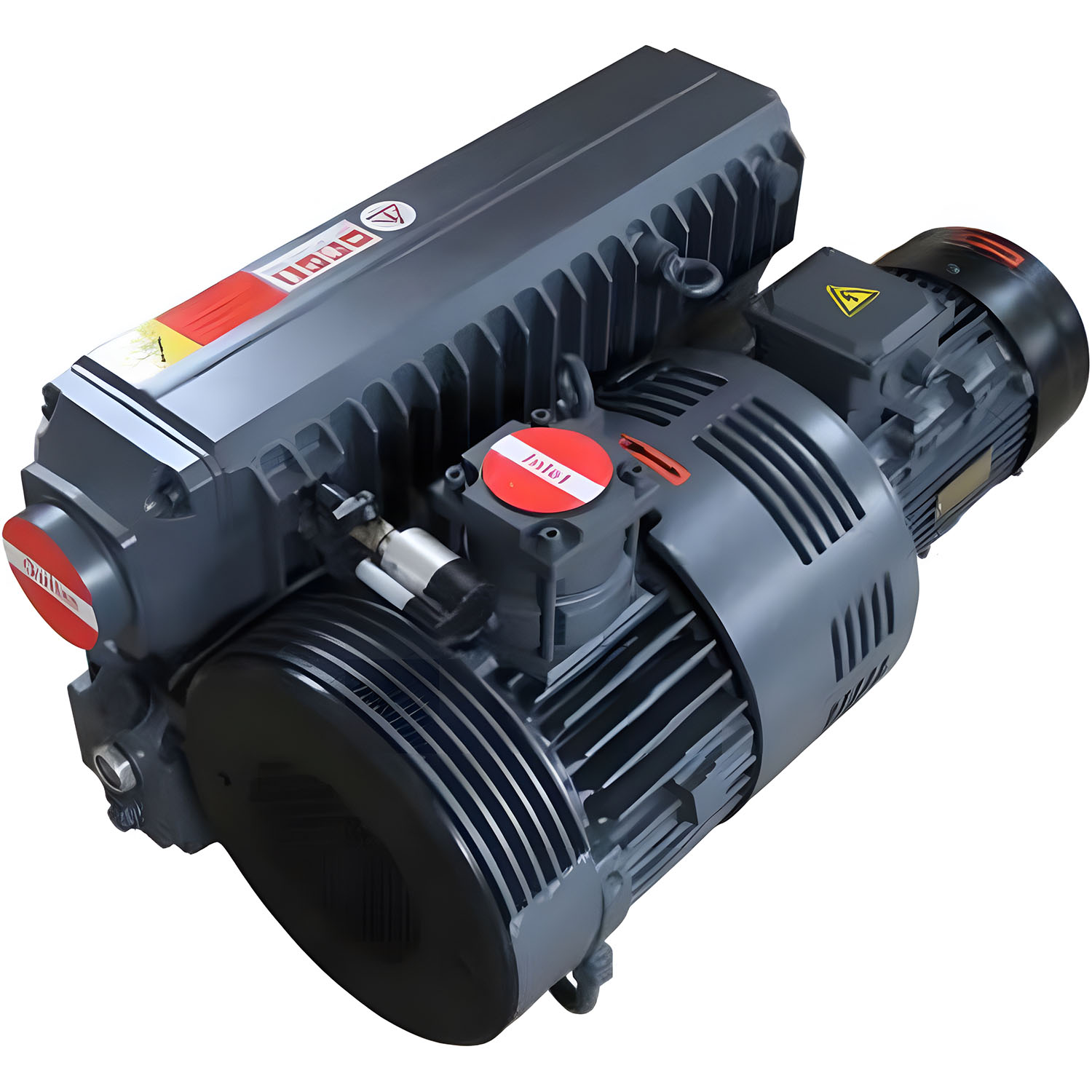

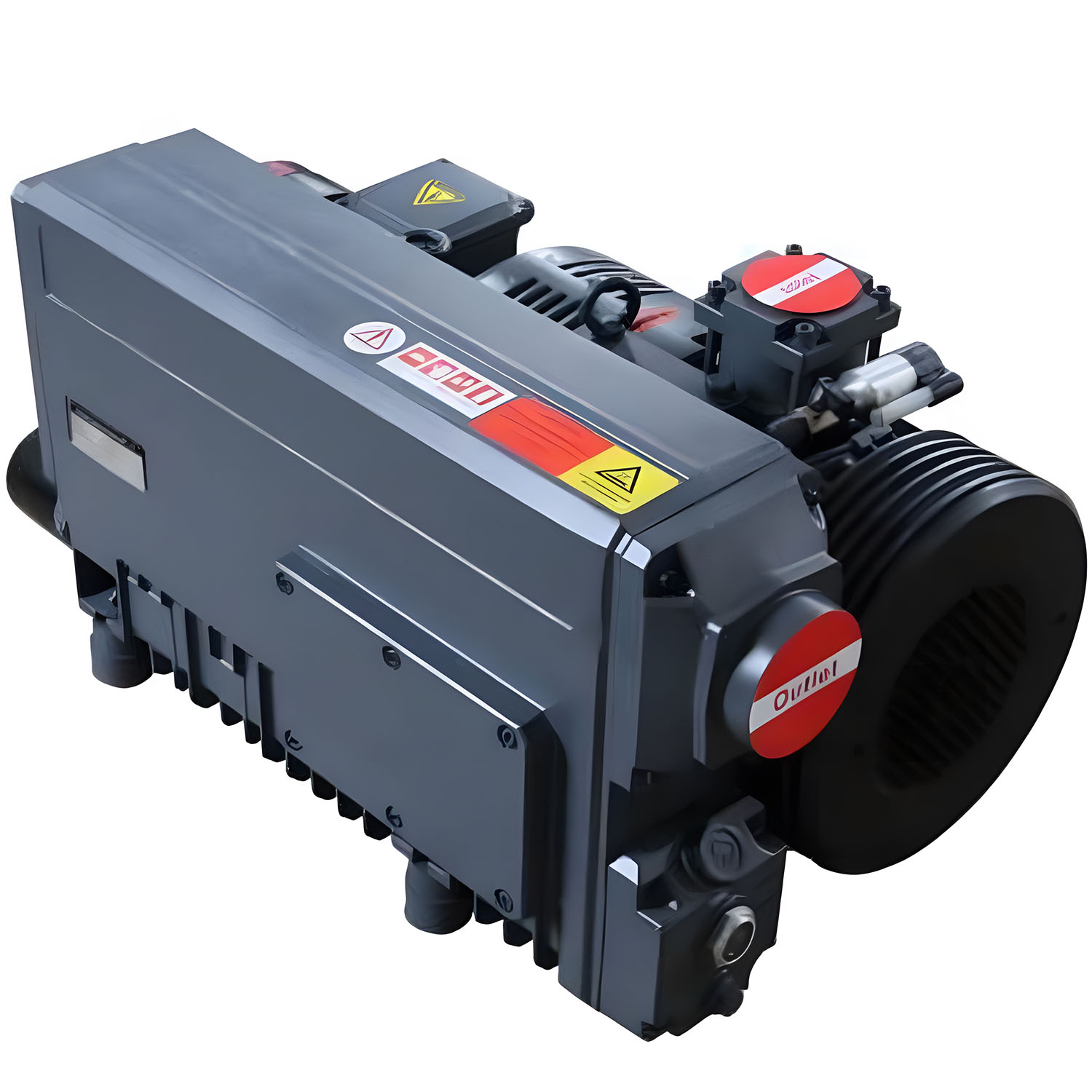

SV series
Single stage rotary vane vacuum pump
The SV series single-stage rotary vane vacuum pump is an ideal equipment for obtaining low to medium vacuum. Used for extracting ordinary air or inert gases and small amounts of condensable steam. Can work continuously within the range of extreme pressure to atmospheric pressure.
PRINCIPAL
In a circular pump body (stator) with suction and exhaust valves, there is a three blade eccentric rotor moving by centrifugal force in the rotor slot. These blades divide the pump into three parts, and their volume changes periodically with the rotation of the rotor, completing the process of gas suction, compression, and discharge, thereby allowing the gas at the suction port to be sucked, forming a vacuum.
PERFORMANCE
*High ultimate vacuum degree, can be less than 0.5 millibars
*High pumping speed
*Low working noise, can be less than 62 decibels
*Strong steam extraction ability
*Environmentally friendly, the pump is equipped with an oil mist eliminator that can remove 99.99% of the oil in the discharged gas
*Compact structure, scientifically reasonable design, lightweight, and easy to install in industrial systems
APPLICATION EXAMPLES
1. Packaging and pasting
Vacuum or inert gas packaging for various foods, metal parts, and electronic components
Paste photos and advertising paper
2. Lifting, conveying, suction, loading and unloading
Lifting of glass panels
The suction of wooden and plastic boards
Loading and unloading of non-magnetic components
In the papermaking and printing industry, the loading, unloading, and transportation of paper and paperboard
Transportation of powdered materials
3. Drying, degassing, impregnation
Drying and impregnation of electronic components
Degassing of molds, coatings, and vacuum furnaces
4. Other
Laboratory equipment
Medical devices
Recovery of Freon
vacuum heat treatment
Pallet and wood case packaging.
