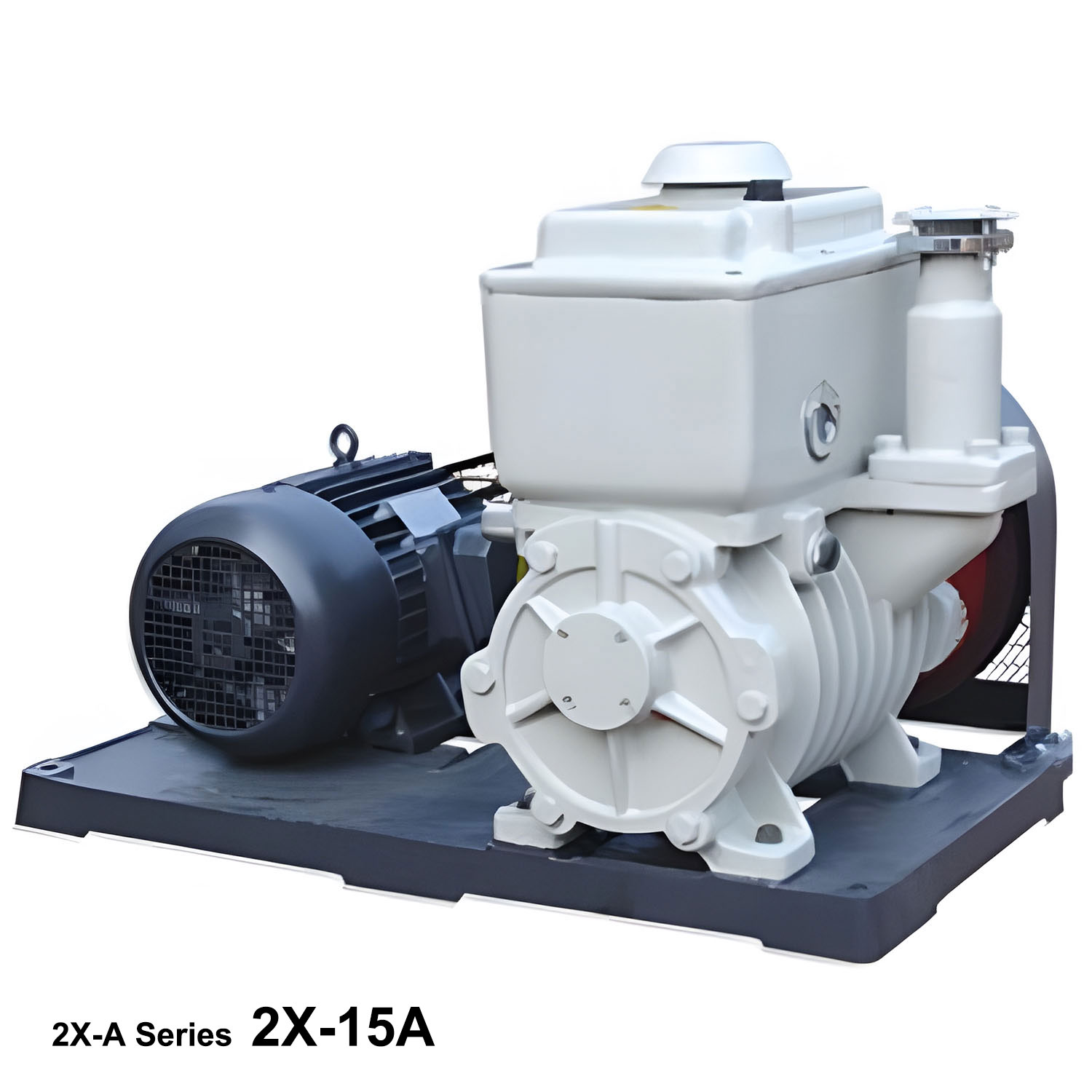

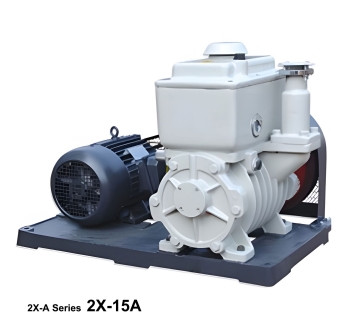

Description: 2X-A two stage rotary vane vacuum pump is
1) belt-drive structure with
2) large speed and
3) high vacuum degree
4) more durable
It\'s very reliable used in vacuum coating machine pump system as pre-pump.
For any question, please feel free to send inquiry to: wang@boaovacuum.com or call us: +86 159 8815 9838
| Model | Ultimate Pressure (Pa) | Ultimate Total Pressure (Pa) | Pumping Speed (L/s) | Inlet Diam (mm) | Nominal Speed (r/min) | Oil Capacity (L) | Motor Power (kW) | Weight (kg) |
| 2X-15A | ≤6×10-2 | ≤1 | 15 | 40 | 320 | 3.3 | 2.2 | 202 |
| 2X-30A | 30 | 65 | 450 | 3.6 | 3 | 250 | ||
| 2X-70A | 70 | 80 | 420 | 4.9 | 5.5 | 400 | ||
| 2X-70B | 70 | 90 | 360 | 8 | 5.5 | 513 |
The 2X-A series rotary vane vacuum pump is a basic equipment used for sealing containers, extracting gas, and obtaining vacuum.
Can be used in industries such as vacuum smelting, vacuum welding, vacuum casting, vacuum drying, vacuum packaging, chemical pharmaceuticals, electric vacuum devices, etc
Can be used as abackingpump (or pre-pump, forepump) for booster pumps, diffusion pumps, and molecular pumps
The working environment temperature of the pump is 5-40C, and when the inlet pressure is less than 1330Pa, it is allowed to work continuously for a long period of time
Our company's 2X-A series rotary vane vacuum pump has benefited from exploration and improvement in the ion nitriding furnace industry, so that it is much more durable.
Pallet and wood case packaging.
^ Exampleof packing, 1;
^Exampleof packing, 2.
