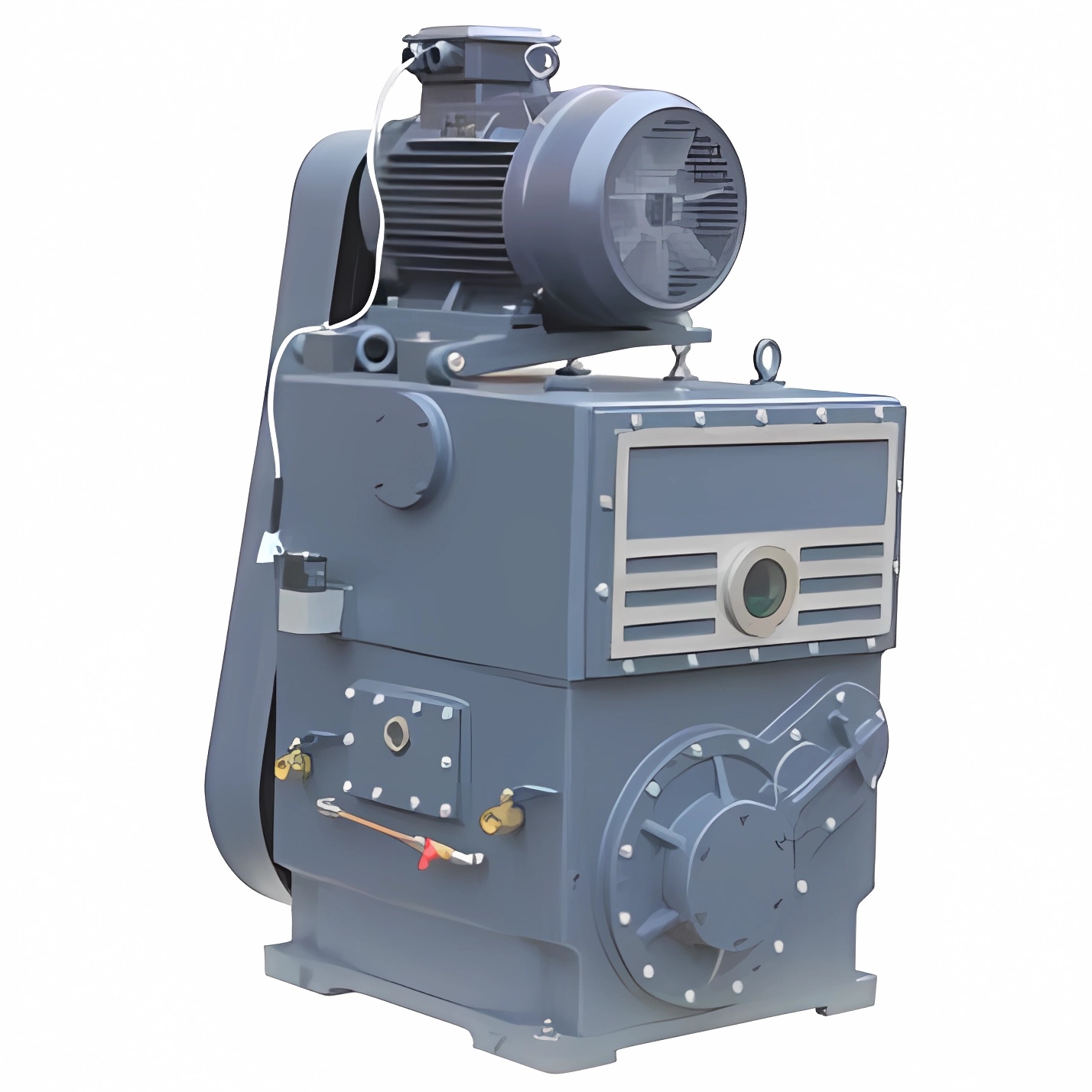

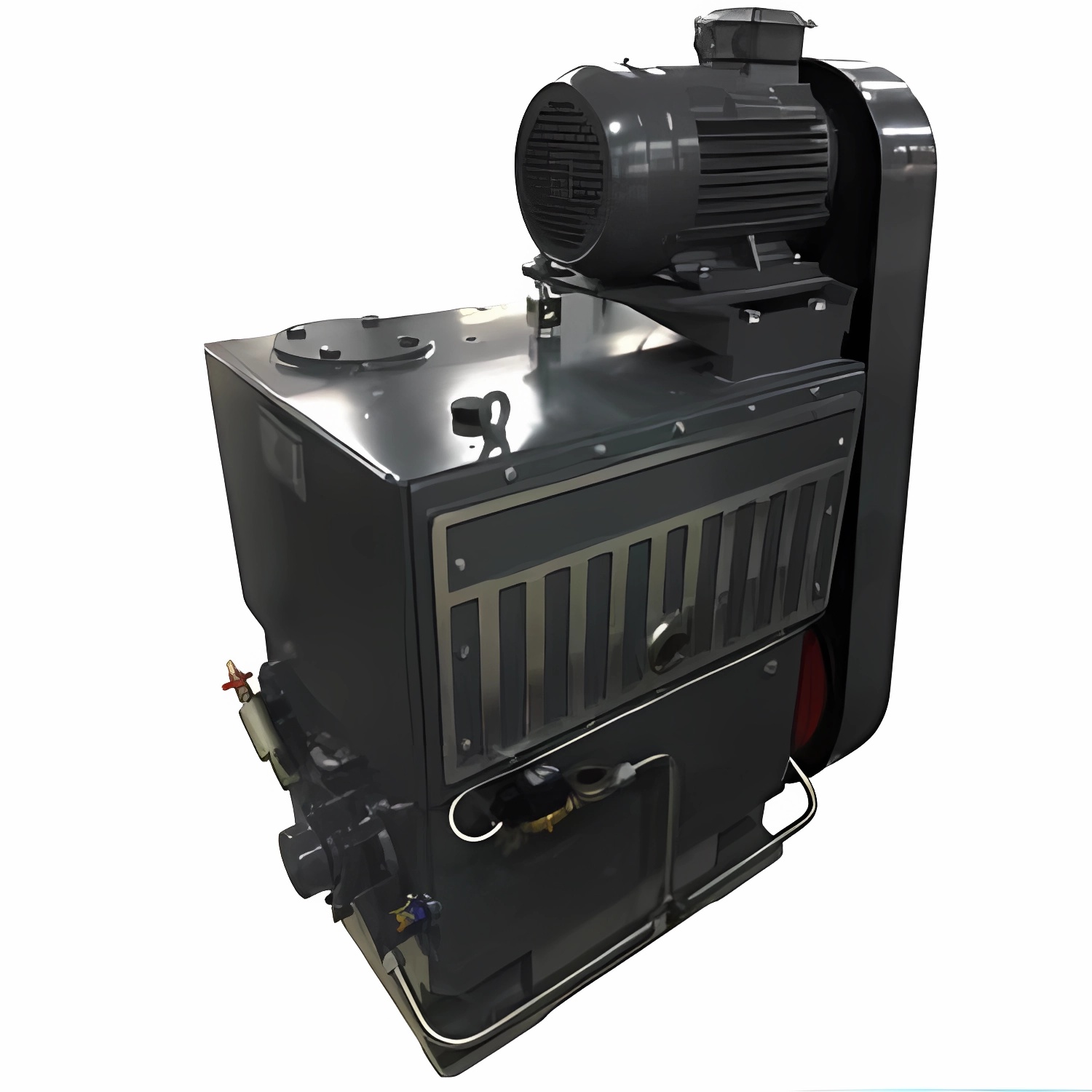

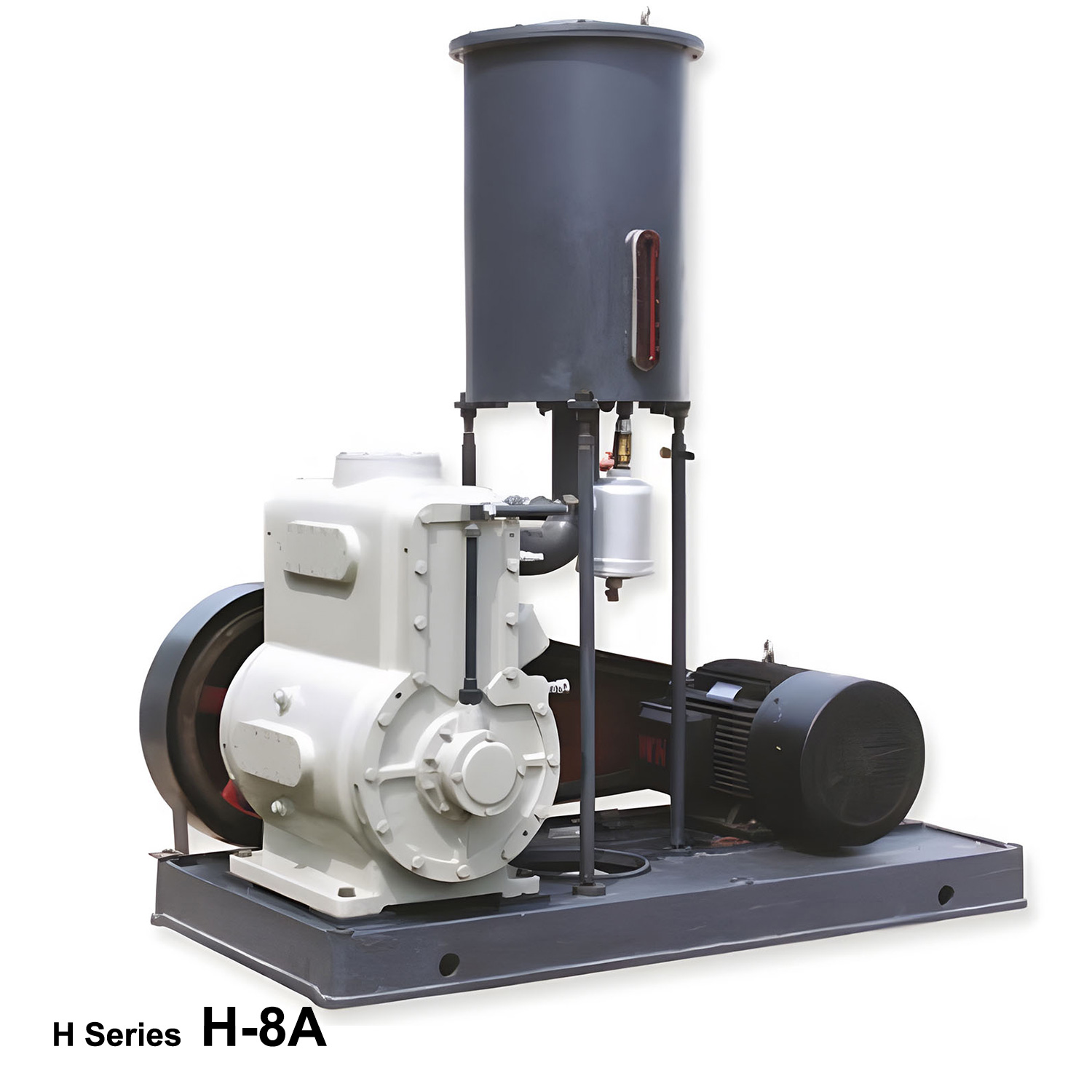

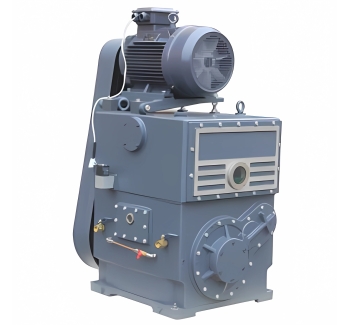

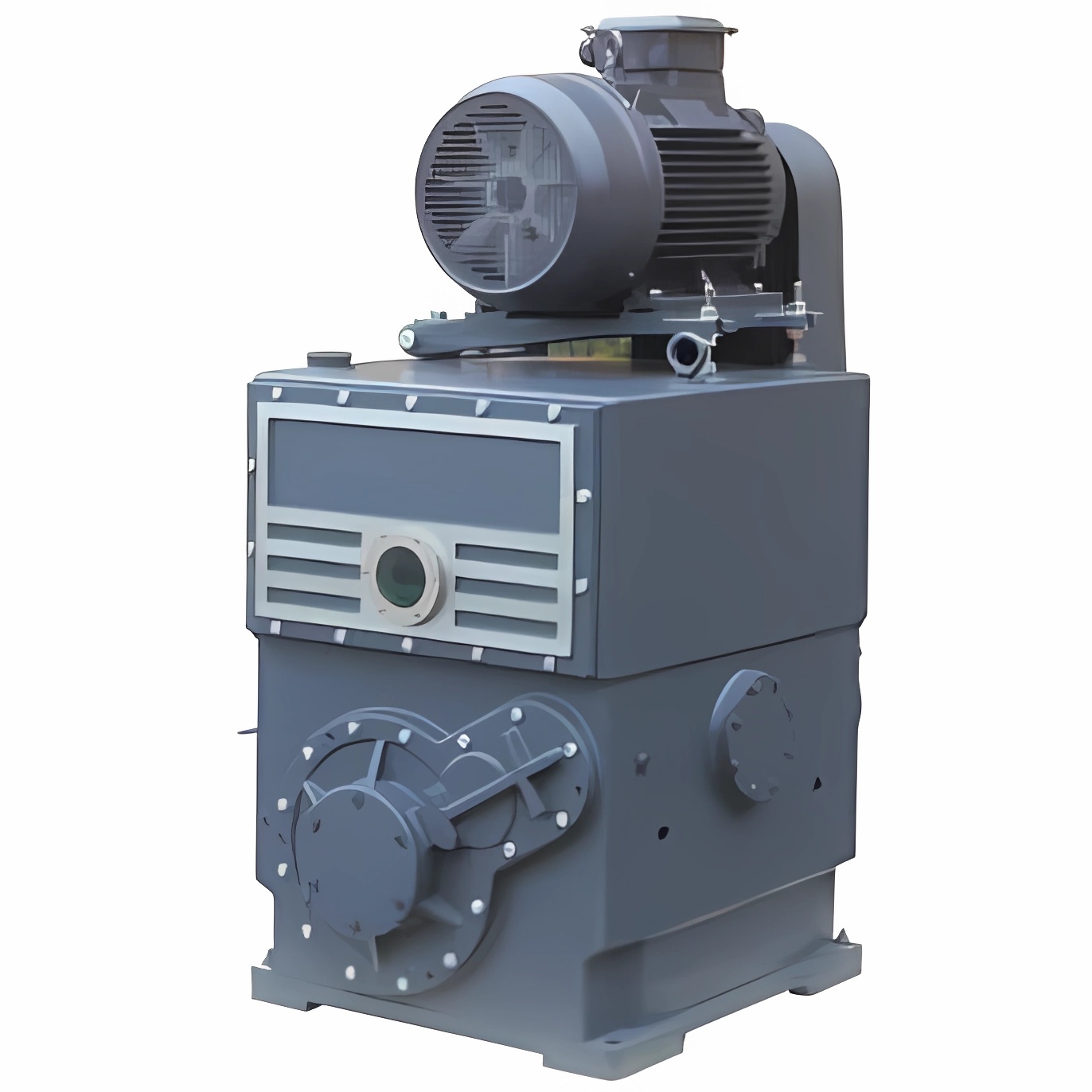

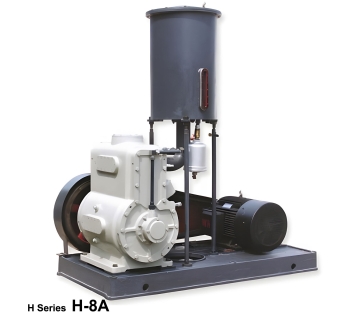

H Series Piston Vacuum Pump is a single stage rotary piston vacuum pump, namely sliding vane vacuum pump.
Applications:
It's suitable for vacuum smelting, vacuum drying, vacuum coating, electrician, electron, metallurgy, chemical industry, ceramic, aviation, laboratory and other occasions of vacuum coating, vacuum drying, vacuum degassing, vacuum impregnation, vacuum brazing, vacuum heat treatment, vacuum concentration, vacuum reaction, high altitude simulation experiments on the vacuum operation ,etc.
It can be used individually and also combined together with the fore-pump of other high-vacuum pumps such as Roots pump, oil diffusion pump and molecular pumps, etc. It’s necessary to add additional devices please, (such as filter, gas-water separator and 1# vacuum oil) in case that gas contains high volume of oxygen, explosive, erosive to ferrous metals, chemically reactive to vacuum oil and more water or dust.
Features:
1) There are sealing grooves on the pump body and pump cover, oil tank and oil tank cover, and O-ring sealing ring is adopted, which is reliable in sealing and easy to disassemble and assemble
2) The oil separator is made of aluminum alloy material; Beautiful shape; Easy to replace
3) The pump bearing is a separate bearing, which is separated from the pump chamber and supplied with oil separately to avoid impurities or harmful gases from entering the bearing and prolong the service life of the bearing
4) Equipped with oil pump and forced lubrication, especially suitable for long-term use under high inlet pressure conditions
Pallet and wood case packaging.
^ Example of packing, 1;
^ Example of packing, 2.
